上海元册电子科技有限公司

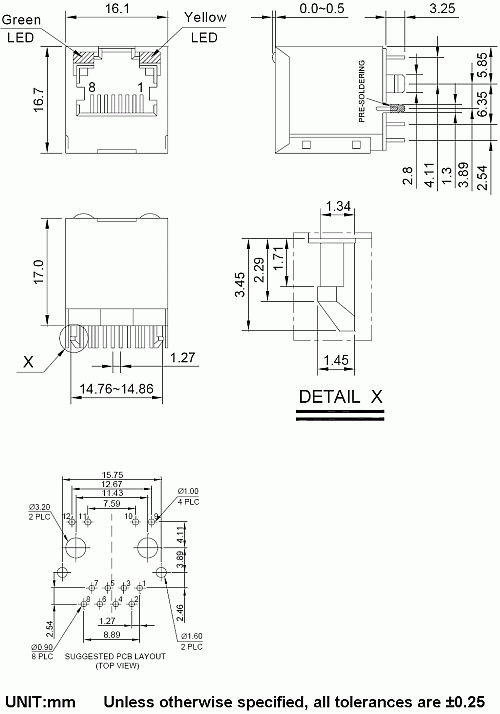

 180° RJ45 10/100 BASE-T JACK WITH MAGNETIC MODULE
FEATURES:
●Magnetic designs to support every PHY
●Meet or exceed IEEE 802.3 and ANSI X3.263 standards
●including 350uH min OCL with 8mA bias
●Minimum 1500Vrms isolation per IEEE 802.3 requirement

YDS P/N:51F-1202GYD2NL 51F-1204GYD2NL  51F-1210GY2D2NL 51F-1211YG3D2NL 51F-1208GY3DZ2NL
