| 产 品： |
浏览次数：437贴片功率电感 |
| 型 号： |
CD54-100K |
| 规 格： |
10UH |
| 最小起订量： |
1000 PCS |
| 供货总量： |
10000000 PCS |
| 发货期限： |
自买家付款之日起 3 天内发货 |
| 更新日期： |
2014-09-04 有效期至：2015-09-03 [已过期] |
|
CD 贴片功率电感镍锌大功率电感 1、表面贴装小型功率电感。2、体积小，薄型，高能量存储，低直流电阻。3、具磁屏蔽耐大电流。4、卷轴包装，易于自动化表贴装。5、主要应用在掌上电脑，数码视听产品以及其它高精度工业设备
| Pict
|
CD31-105 贴 片 电 感 |
| |
| |
|
|
|
|
|
|
| |
|
|
|
|
|
|

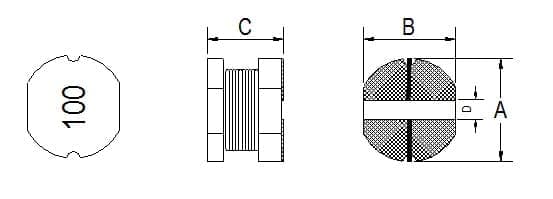

| 1. 五环图型及尺寸( SHAPE AND SIZE) ( 单位 mm ) |
|
|
| |
|
| |
|
| Pict
|
|
|
|
|
|
|
| |
 |
|
|
|
|
|
| |
|
|
|
|
|
|
| |
|
|
|
|
|
|
| |
|
|
|
|
|
|
| |
|
|
|
|
|
|
| |
|
|
|
|
|
|
| |
|
|
|
|
|
|
| 类 型 |
A |
B |
C |
D ref |
|
| CD31 |
3.5±0.3 |
3.0±0.3 |
1.1±0.2 |
0.8 |
|
| CD32 |
3.5±0.3 |
3.0±0.3 |
2.0±0.3 |
0.8 |
|
| CD43 |
4.5±0.3 |
4.0±0.3 |
3.2±0.3 |
1.5 |
|
| CD52 |
5.8±0.3 |
5.2±0.3 |
2.5±0.3 |
1.7 |
|
| CD53 |
5.8±0.3 |
5.2±0.3 |
3.0±0.3 |
1.7 |
|
| CD54 |
5.8±0.3 |
5.2±0.3 |
4.5±0.3 |
1.7 |
|
| CD73 |
7.8±0.3 |
7.0±0.3 |
3.5±0.5 |
2.0 |
|
| CD75 |
7.8±0.3 |
7.0±0.3 |
5.0±0.5 |
2.0 |
|
| CD104 |
10.0±0.3 |
9.0±0.3 |
4.0±0.3 |
2.5 |
|
| CD105 |
10.0±0.3 |
9.0±0.3 |
5.4±0.3 |
2.5 |
|
| CD108 |
10.0±0.3 |
9.0±0.3 |
8.0±0.3 |
2.5 |
|
| CD137 |
13.0±0.3 |
12.0±0.3 |
7.0±0.3 |
3.0 |
|
| CD2017 |
20.0±0.3 |
19.0±0.3 |
17.0±0.3 |
3.0 |
|
| |
|
|
|
|
|
|
| 2. 五环编号表示 |
|
|
|
| |
|
|
| |
|
|
| ＣＤ ７５ － 221 K |
|
|
|
| (1) (2) (3) (4) |
|
|
|
| |
|
|
|
|
|
|
| (1). 编号(Type) : CD31/32/43/52/53/54/73/75/104/105 ( CD ) |
|
|
| (2). 尺寸（Size) : 成品外型尺寸（According to size) ( 75 ) |
|
|
|
| (3). 标称电感值(Inductance) : "221"表示220uH（Example: "221"for 220uH) ( 221 ) |
|
| (4). 电感公差（Tolerance) :"M:±20%, "K":±10% , "J":±5% ( K ) |
|
| |
CD54 贴片功率电感系列特性 |
| 五环编号 |
L |
TESTING |
DC |
RATED DC |
| FREQ. |
RESISTANCE |
CURRENT |
| uH |
(MHz). |
(Ω) MAX. |
A MAX |
| CD54-100K |
10 |
2.52 |
0.10 |
1.44 |
| CD54-120K |
12 |
2.52 |
0.12 |
1.40 |
| CD54-150K |
15 |
2.52 |
0.14 |
1.30 |
| CD54-180K |
18 |
2.52 |
0.15 |
1.23 |
| CD54-220K |
22 |
2.52 |
0.18 |
1.11 |
| CD54-270K |
27 |
2.52 |
0.20 |
0.97 |
| CD54-330K |
33 |
2.52 |
0.23 |
0.88 |
| CD54-390K |
39 |
2.52 |
0.32 |
0.80 |
| CD54-470K |
47 |
2.52 |
0.37 |
0.72 |
| CD54-560K |
56 |
2.52 |
0.42 |
0.68 |
| CD54-680K |
68 |
2.52 |
0.46 |
0.61 |
| CD54-820K |
82 |
2.52 |
0.60 |
0.58 |
| CD54-101K |
100 |
1KHZ |
0.70 |
0.52 |
| CD54-121K |
120 |
1KHZ |
0.93 |
0.48 |
| CD54-151K |
150 |
1KHZ |
1.10 |
0.40 |
| CD54-181K |
180 |
1KHZ |
1.39 |
0.38 |
| CD54-221K |
220 |
1KHZ |
1.57 |
0.35 |
|
